854 – SERIES

Characteristics

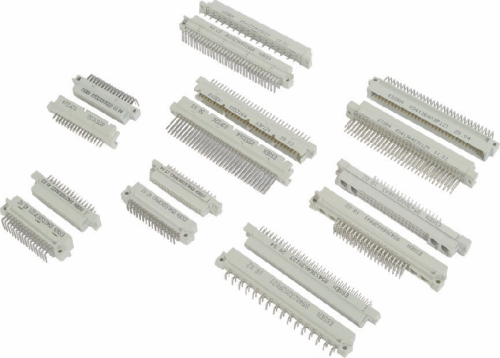

  • Two part PC board connector comprising of male and female.
  • Give a very high contact density-upto 96 contacts in three row on a 2.54 mm.grid.
  • Conform to DIN 41612,IEC 603-2 and BS 9525 requirements.
  • Produced in form B,C and half euro (form B/2,C/2), combined/mixed layouts (form M).
  • Suitable for making connection between the card and back panel of electronic equipments.
  • Find application in the field of telecommunications, computers, instruments,controls and avionics.
  • Available in a wide range of contact arrangements and configurations.

Tehnical Data

Size



Contact spacing
Polarisation
Operating current
Operating voltage
Withstand voltage


Insulation resistance
Contact resistance
Operating temperature
Insulation material
Contact material
Contact finish

Insertion force



Withdrawal force



Contact retention
Mechanical endurance

From B      –   32, 64
From B/2 –   16,  32
From C      –    32,  64,   96
From C/2 –    16,   32,   48
From M     –    78+2, 60+4, 42+6
2.54/5.08 mm.
Connector shape
3 A max.at 85°C
350 V DC or AC peak
1000 V rms between contacts and
1550 V rms between contact and
ground for one min.
5000 Mohm min.
15 mohms max.
-55°C to +125°C
Flame retardant thermoplastic (UL94V-O)
Copper alloy
Contact zone – selectively gold plated
Termination zone -tin lead
96way≤90N
64way ≤ 60N
48way ≤ 45 N
32way ≤ 30N
96way ≥ 18 N
64way ≥ 12 N
48way ≥ 9 N
32 way ≥ 6 N
Male    –    20 N min.
Class I      500 cycles
Class II    400 cycles
Class III  50 cycles

FORM 'B', MALE, ANGLED SOLDER PINS (Two row)

No. of Contacts

  • 32
  • 32
  • 32
  • 64

Contact arrangement

  • 32 a,b (even)
  • 32 a,b (odd)
  • 32a
  • 64 a,b

Ordering code

  • 8540232 ( ) P02*
  • 8540232 ( ) P03*
  • 8540232 ( ) P00*
  • 8540264 ( ) P01*

Termination Style

PC right angle

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
1
3.5-2.5
0.86-0.73
2
5.0-4.0
0.86-0.73
4
3.5-2.5
0.60-0.50
6
5.0-4.0
0.60-0.50

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'B', FEMALE, STRAIGHT DIP SOLDER/WIRE WRAP (Two row)

No. of contact

  • 32
  • 32
  • 32
  • 64

Contact arrangement

  • 32 a,b (even)
  • 32 a,b (odd)
  • 32a
  • 64 a,b
  •

Ordering Code

  • 8540232( ) S02*
  • 8540232( ) S03*
  • 8540232( ) S00*
  • 8540264( ) S01*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Straight DIP Solder
7
3.5-2.5
0.86-0.73
3
5.0-4.0
0.86-0.73
8
8.0-7.0
0.86-0.73
9
3.5-2.5
0.60-0.50
10
5.0-4.0
0.60-.0.50
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'B/2',MALE, ANGLED SOLDER PINS (Two row, half euro)

No. of contact

  • 32
  • 16
  • 16
  • 16

Contact arrangement

  • 32 a,b
  • 16 a,b (even)
  • 16 a,b (odd)
  • 16 a

Ordering Code

  • 8540332 ( ) P06*
  • 8540316 ( ) P07*
  • 8540316 ( ) P08*
  • 8540316 ( ) P09*

Termination Style

PC right angle

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
1
3.5-2.5
0.86-0.73
2
5.0-4.0
0.86-0.73
4
3.5-2.5
0.60-0.50
6
5.0-4.0
0.60-0.50

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'B/2',FEMALE, STRAIGHT DIP SOLDER/ WIRE WRAP (Two row,half euro)

No. of contact

  • 32
  • 16
  • 16
  • 16

Contact arrangement

  • 32a,b
  • 16 a,b (even)
  • 16a,b (odd)
  • 16 a

Ordering Code

  • 8540332 ( ) S06*
  • 8S40316 ( ) S07*
  • 8540316 ( ) S08*
  • 8540316 ( ) S09*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Straight DIP Solder
7
3.5-2.5
0.86-0.73
3
5.0-4.0
0.86-0.73
8
8.0-7.0
0.86-0.73
9
3.5-2.5
0.60-0.50
10
5.0-4.0
0.60-.0.50
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'C',MALE, ANGLED SOLDER PINS (Three row, standard euro)

No. of contact

  • 96
  • 64
  • 64
  • 48
  • 48
  • 32
  • 32
  • 32
  • 32
  • 32
  • 16
  • 66

Contact arrangement

  • 96a,b,c
  • 64a,c
  • 64b,c
  • 48 a,b,c (odd)
  • 48a,b, c (even)
  • 32 a,c (odd)
  • 32a,c (even)
  • 32a
  • 32 b
  • 32c
  • 16 a (even}
  • 66 a,b,c (every third row empty)

Ordering Code

  • 8541396 ( ) P13*
  • 8541364 ( ) P12*
  • 8541364 ( )P14*
  • 8541348 ( )P17*
  • 8541348 ( ) P18*
  • 8541332 ( ) P15*
  • 8541332 ( ) P16*
  • 8541332( )P10*
  • 854 1332( ) P20*
  • 8541332 ( ) P11*
  • 8541316 ( )P19*
  • 854 1366 ( )P30*

Termination Style

PC right angle

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
1
3.5-2.5
0.86-0.73
2
5.0-4.0
0.86-0.73
4
3.5-2.5
0.60-0.50
6
5.0-4.0
0.60-0.50

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'C', FEMALE, STRAIGHT DIP SOLDER/ WIRE WRAP (Three row, standard euro)

No. of contact

  • 96
  • 64
  • 64
  • 48
  • 48
  • 32
  • 32
  • 32
  • 32
  • 32
  • 16
  • 66

Contact arrangement

  • 96a,b,c
  • 64a,c
  • 64b,c
  • 48 a,b,c (odd)
  • 48a,b, c (even)
  • 32 a,c (odd)
  • 32a,c (even)
  • 32a
  • 32 b
  • 32c
  • 16 a (even}
  • 66 a,b,c (every third row empty)

Ordering Code

  • 8541396 ( ) S13*
  • 854 1364( ) S12*
  • 8541364 ( ) S14*
  • 8541348( ) S17*
  • 8541348 () S18*
  • 854 1332 ( ) S15*
  • 8541332 ( ) S16*
  • 8541332 ( ) S10*
  • 854 1332 ( ) S20*
  • 854 1332 ( ) S11*
  • 8541316 ( ) S19*
  • 854 1366 ( ) S30*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Straight DIP Solder
7
3.5-2.5
0.86-0.73
3
5.0-4.0
0.86-0.73
8
8.0-7.0
0.86-0.73
9
3.5-2.5
0.60-0.50
10
5.0-4.0
0.60-.0.50
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'C/2', MALE, ANGLED SOLDER PINS (Three row, half euro)

No. of contact

  • 48
  • 32
  • 16
  • 16
  • 16

Contact arrangement

  • 48 a,b,c
  • 32 a,c
  • 16 a
  • 16 a,c (even)
  • 16 a,c (odd)

Ordering Code

  • 8542348 ( ) P23*
  • 8542332 ( ) P22*
  • 8542316 ( ) P21*
  • 8542316 ( ) P25
  • 8542316 ( ) P26*

Termination Style

PC right angle

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
1
3.5-2.5
0.86-0.73
2
5.0-4.0
0.86-0.73
4
3.5-2.5
0.60-0.50
6
5.0-4.0
0.60-0.50

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'C/2', FEMALE, STRAIGHT DIP SOLDER PINS / Wire Wrap (Three row, half euro)

No. of contact

  • 48
  • 32
  • 16
  • 16
  • 16

Contact arrangement

  • 48 a,b,c
  • 32 a,c
  • 16 a
  • 16 a,c (even)
  • 16 a,c (odd)

Ordering Code

  • 8542348 ( ) S23*
  • 8542332 ( ) S22*
  • 8542316 ( ) S21*
  • 8542316 ( ) S25
  • 8542316 ( ) S26*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Straight DIP Solder
7
3.5-2.5
0.86-0.73
3
5.0-4.0
0.86-0.73
8
8.0-7.0
0.86-0.73
9
3.5-2.5
0.60-0.50
10
5.0-4.0
0.60-.0.50
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'M',MALE, ANGLED SOLDER PINS (Mixed euro)

No. of contact

  • 78
  • 60
  • 42

Contact arrangement

  • 78+2 a,b,c
  • 60+4 a,b,c
  • 42+6 a,b,c

Ordering Code

    • 854 3078 ( ) P80*
    • 854 3060 ( ) P64*
    • 854 3042 ( ) P48*

Termination Style

PC right angle

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
1
3.5-2.5
0.86-0.73
2
5.0-4.0
0.86-0.73
4
3.5-2.5
0.60-0.50
6
5.0-4.0
0.60-0.50

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'M',FEMALE, STRAIGHT DIP SOLDER/ WIRE WRAP (Mixed euro)

No. of contact

  • 78
  • 60
  • 42

Contact arrangement

  • 78+2 a, b,c
  • 60+4 a,b,c
  • 42+6 a,b,c

Ordering Code

  • 854 3078 ( ) S80*
  • 854 3060 ( ) S64*
  • 854 3060 ( ) S48*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Straight DIP Solder
7
3.5-2.5
0.86-0.73
3
5.0-4.0
0.86-0.73
8
8.0-7.0
0.86-0.73
9
3.5-2.5
0.60-0.50
10
5.0-4.0
0.60-.0.50
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Contact aarangments

Detail 78+2 60+4 42+6
P
25
19
13
T
13.25
20.87
28.49
X
73.66
73.66
73.66
Y
-
7.62
7.62
Z
-
-
15.24

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'B' ,FEMALE, PRESS FIT, WIRE WRAP (Two Row)

No. of contact

  • 32
  • 32
  • 32
  • 64

Contact arrangement

  • 32 a,b  (even)
  • 32 a,b  (odd)
  • 32 a
  • 64 a,b
  •

Ordering Code

  • 85402P32 ( ) S02*
  • 85402P32 ( ) S03*
  • 85402P32 ( ) S00*
  • 85402P64 ( ) S01*
  •

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

FORM 'B/2' ,FEMALE, PRESS FIT, WIRE WRAP (Two Row, half Euro)

No. of contact

  • 32
  • 16
  • 16
  • 16

Contact arrangement

  • 32 a, b
  • 16 a,b  (even)
  • 16 a,b  (odd)
  • 16 a
  •

Ordering Code

  • 85403P32 ( ) S06*
  • 85403P16 ( ) S07*
  • 85403P16 ( ) S08*
  • 85403P16 ( ) S09*
  •

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'C' ,FEMALE, PRESS FIT, WIRE WRAP (Three row, standard zero)

No. of contact

  • 96
  • 64
  • 64
  • 48
  • 48
  • 32
  • 32
  • 32
  • 32
  • 32
  • 16
  • 66

Contact arrangement

  • 96 a, b
  • 64 a,c
  • 64 b,c
  • 48 a,b,c (odd)
  • 48 a,b,c (even)
  • 32 a,c (odd)
  • 32 a,c (even)
  • 32 a
  • 32 b
  • 32 c
  • 16 a (even)
  • 66 a,b,c (every third row empty)
  •
  •
  •

Ordering Code

  • 85413P96 ( ) S13*
  • 85413P64 ( ) S12*
  • 85413P64 ( ) S14*
  • 85413P48 ( ) S17*
  • 85413P48 ( ) S18*
  • 85413P32 ( ) S15*
  • 85413P32 ( ) S16*
  • 85413P32 ( ) S10*
  • 85413P32 ( ) S20*
  • 85413P32 ( ) S11*
  • 85413P16 ( ) S19*
  • 85413P66 ( ) S30*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

FORM 'M' ,FEMALE, PRESS FIT, WIRE WRAP (Mixed Euro)

No. of contact

  • 78
  • 60
  • 42

Contact arrangement

  • 78+2 a,b,c
  • 60+4 a,b,c
  • 42+6 a,b,c

Ordering Code

  • 854 30 P78 ( ) S80*
  • 854 30 P60 ( ) S64*
  • 854 30 P42 ( ) S48*

Termination Style

Style* Pintail length
'a' (mm.)		 Cross section
diagonal 'd' (mm.)
Wire wrap
5
14.0-13.0
0.86-0.76
11
18.0-17.0
0.86-0.76

Contact aarangments

Detail 78+2 60+4 42+6
P
25
19
13
T
13.25
20.87
28.49
X
73.66
73.66
73.66
Y
-
7.62
7.62
Z
-
-
15.24

Add following at () and * in the ordering code
above for required contact finish and pin tail length respectively.
() 01- Class 1, 02-Class 2, 03-Class 3
* Style

Series


  • 854

Form

02

  • Form B         -02
  • From B/2    -03
  • From C         -13
  • From C/2   – 23
  • FromM         -30

Contact Style


  • p
  • Press Fit – P
  • Solder- omitted

No.of Contacts

  • 16
  • 32,64
  • 16,32
  • 32,64,96 16,32,48 78,60,42

Contact Finish

  • 01
  • Class 1 – 01
  • Class 2-  02
  • Class 3 – 03

Type


  • P
  • Male -P
  • Female-S

Contact arrangement


  • 13
  • Form B
  • 64 a,b                     (2.54mm.)-01
  • 32 a,b (even)      (5.08mm.)-02
  • 32 a,b (odd)        (5.08mm.)-03
  • 32 a                         (2.54mm.)-00
  • Form B/2
  • 32 a,b                     (2.54mm.)-06
  • 16 a,b (even)      (5.08mm.)-07
  • 16 a,b (odd)        (5.08mm.)-08
  • 16 a                         (2.54mm.)-09
  •
  • Form C
  • 96a,b,c                                               (2.54mm.)-13
  • 64a,c                                                   (2.54mm.)-12    64b,c                                                   (2.54mm.)-14
  • 48a, b, c (odd)                                 (5.08mm.)-17
  • 32a, b, c (even)                               (5.08mm.)-18
  • 32a, c (odd)                                      (5.08mm.)-15
  • 32a, c (even)                                    (5.08mm.)-16
  • 32a                                                       (2.54mm.)-10
  • 32c                                                       (2.54mm.)-11
  • 16a (even)                                        (5.08mm.)-19
  • 32b                                                      (2.54mm.)-20
  • 66a,b,c (every third party row empty)-30
  • 32b,c (even)                                   (5.08mm.)-28
  • 32b,c (odd)                                      (5.08mm.)-29
  • 64a,b                                                  (2.54mm.)-31
  •
  • Form C/2
  • 48 a,b,c                                                 (2.54mm.)-23
  • 32 a,c                                                     (2.54mm.)-22   16 a                                                        (2.54mm.)-21
  • 16 a,c (even)                                       (5.08mm.)-25
  • 16 a,c (odd )                                        (5.08mm.)-26
  • 32 a, b                                                    (2.54mm.)-27
  •
  • Form M
  • 78+2 Pins a,b,c                                (2.54mm.)-80
  • 78+2 Pins a,b,c                                (2.54mm.)-64   42+6 Pins a,b,c                                (2.54mm.)-48
  •

Spill tail length

  • 1
  • Male angled solder pin
  • 3.5-2.5/0.86-0.73             -1
  • 5.0-4.0/0.86–0.73           – 2
  • 3.5-2.5/0.60-0.50            – 4
  • 5.0-4.0/0.60–0.50           – 6
  • Female straight DIP solder
  • 3.5-2.5/0.86-0.73           – 7
    5.0-4.0/0.86–0.73          – 3
    8.0-7.0/0.86–0.73          – 8
    3.5-2.5/0.60–0.50          – 9
    5.0-4.0/0.60–0.50        – 10
    5.5-6.5/0.86-0.73           -15
    6.0-7.0/0.86-0.73           -12
  • Female wire wrap
  • 14.0-13.0/0.86-0.76       – 5 18.0-17.0/0.86-0.76   – 11

Note:
1. Euro connectors with advance contacts are available on request.
2. Add suffix 'B' or 'L' or 'K' for connectors required with board lock for snap fit on PCB.
B- Suitable for PCB thickness 1.6 mm.
 L- Suitable for PCB thickness 2.4 mm.
K- Suitable for PCB thickness 3.2 mm.
 3. Please consult factory for other pin configurations.
4. Euro connectors with early make & early break pins arealso available.

Copyright © 2024 Essen Deinki
