LSV – SERIES

Essen deinki’s LSV series is like a versatile Swiss army knife of miniature limit switches. These little powerhouses have a snap-acting crossbar design with 1 Normally Open (NO) and 1 Normally Closed (NC) contact, ready for action. They can handle up to 5A at 250 VAC, meeting AC-15 duty standards – pretty impressive. And don’t underestimate their toughness; they’ve got an IP67 rating, which means they can stand up to dust and water like a champ.

What’s neat is that they’ve got staggered NO/NC contacts that make wiring a breeze without sacrificing that compact size. These switches are built to last, with a mechanical life of 10 million operations and an electrical life of 300,000 cycles at full load. That’s some serious durability right there.

Here’s where they get even cooler: the modular actuating head is like a swivel chair – you can turn it any which way by removing just four mounting screws. And if you thought that was nifty, there are five different actuator options to choose from.

So, Essen deinki’s LSV series is your go-to for precision and adaptability in all sorts of industrial settings. These switches are the real deal!

LSV-SERIES

Characteristics

1NO+1NC Snap acting mechanism using crossbar design

5A at 250 VAC rating at AC-15 duty as per IEC 60947-5-1/ IS 13947-5-1

Designed for IP65 ingress protection against dust and water.

Staggered NO/NC contacts provide enough space for wiring yet make the design compact.

10 million operations mechanical life and 300K electrical life at full rated load.

Modular actuating head can be turned in any direction at user premises by removal of 4 mounting screws.

5 Actuator options.

LSV-SERIES

About

Essen Miniature Limit Switch LS-V series are compact Limit switches that provide reliable switching in a size that is 1/3 size of Essen traditional LSO series limit switches. The LS-V switches are small yet provide ample wiring space to the field technician. The two part housing design helps in wiring and checking the performance in the field Rated Switching current of 5A at 250V AC and reliability of 300K electrical switching cycles at full load to ensure long life in the end customer application. A variety of actuator heads and IP 65 ingress protection are added benefits of this Limit Switch.

Specifications

Contact Arrangement

Electrical Rating

Contact Resistance

Electrical Life

Mechanical Life

Dielectric Strength

Housing

Operating Temperature

Humidity

Wiring: max

Certification

: 1NO+1NC snap acting mechanism

: 5A at 250 VAC at AC-15 duty, 0.4A at 125 VDC at DC-13 duty.

: 25mOhm (silver plated contacts)

: 300,000 operations, (at full load),

:10 million operation.

: 1500 VAC RMS for 1 minute between contacts and body.

: Zinc die cast base and UL94-VO flame retardant thermoplastic cover.

: -20°C to +70°C.

: 95% RH (non condensing)

:1.0 mm2 conductor.

: CE

Ordering Information

LS – V

I

Miniature Limit Switch Series

Actuator

I
Side Rotary, Roller Lever (Roller Dia18x7.0)
J
Side Rotary, Adjustable Roller Lever (Roller Dia18x7.0)
D
Pin Plunger (Plunger Dia7.0)
H
Roller Plunger (Roller Dia12.5x3.8)
E
Cross Roller Plunger (Roller Dia12.5x3.8)

Side Rotary, Roller Lever

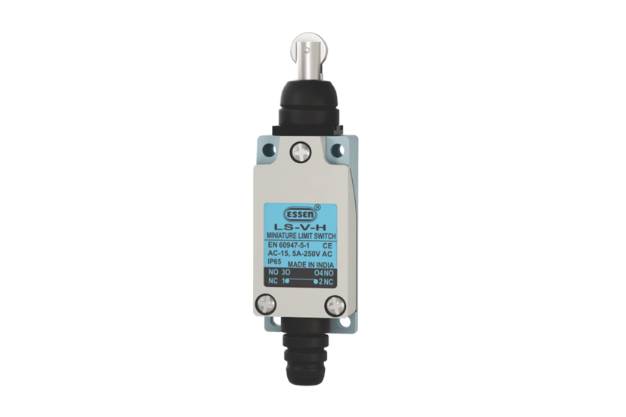

Ordering Code - LS-V-I

Side Rotary, Adjustable Roller Lever

Ordering Code - LS-V-J

Pin Plunger

Ordering Code - LS-V-D

Roller Plunger

Ordering Code - LS-V-H

Cross Roller Plunger

Ordering Code - LS-V-E

Operating Characteristics

PARAMETER LS-V-I LS-V-J LS-V-D LS-V-H LS-V-E
Operating Force OF-Max. (Gms)
700
800
1100
1100
1100
Release Force RF-Min. (Gms)
60
60
250
250
250
Pre Travel PT-Max
30°
30°
2.0 mm
2.0 mm
2.0 mm
Over Travel OT-Min
60°
60°
4.0 mm
4.0 mm
4.0 mm
Total Travel TT-Min
90°
90°
5.5 mm
5.5 mm
5.5 mm
Movement Differential MD-Max
15°
15°
1.2 mm
1.2 mm
1.2 mm
