PS- SERIES
Essen deinki’s PS-Series precision limit switches are the real deal. You can choose from Single Pole (1NO + 1NC) or Double Pole (2NO + 2NC) configurations, giving you control flexibility. These switches mean business with their quick break-before-make action, ensuring precision in your operations. They’re built to last, with a mechanical life of at least 10 million operations. Plus, they’ve got fine silver contacts that work smoothly and provide high contact pressure, perfect for dry circuit applications.
Their tough thermoplastic enclosure, rated semi-dustproof (IP-10), can handle the heat and resist arcs. And when it comes to electrical strength, they’re no slouch, standing tall at 1000V AC for 1 minute between non-continuous terminals and 1500V AC for 1 minute between terminals and the body (ground). When precision and durability matter, Essen deinki’s PS-Series has you covered.
Characteristics
- Single Pole (INO + INC) & Double Pole (2NO + 2NC) Changeover Snap Action.
- Quick break before make action.
- Long mechanical liofe 10 million operations (minimum)
- Fine Silver contacts, wiping actionb and high contact pressure assured on dry circuit applications.
- Semi dust prooof(IP-10) thermoplastic enclosure of high physical strength and high arc resistant.
-
Dielectric Strength : 1000V AC for 1 minute between non continuous terminals.
1500 V AC for 1 minute between terminals and body (ground)
Precision Limit Switch
Series PS
Types of actuators

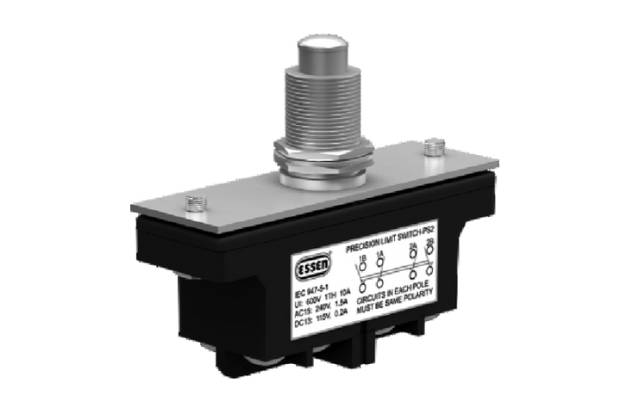

Plain Plunger Actuators
Roller Plunger Actuators
Actuators are designed for one hole mounting. The roller plunger in line woth the length of the limit switch or at right angle to it. This allows roller to accept cam or slide from any of the four directions.
Six Inch (150mm) Plain Lever Actuator
Actuators are provided either top and right hand mounting or top and left hand mounting. The lever may be cut or bent to any desired length and shape by the user to satisfy unusual requirements.
Roller Lever Actuator
Actuators are provided either top and right hand mounting or top and left hand mounting. The levers are equipped with a steel roller which may be actuated by a cam or some similar actuating device. Operation is provided in both directions.
Electrical Ratings
Operational current and voltage:-
AC 15 RATING (B600)
Voltage | Single Pole (1NO + 1NC) | Voltage | Double Pole (2NO + 2NC) |
|---|---|---|---|
120V | 6.0A | 120V | 3.0A |
240V | 3.0A | 240V | 1.5A |
480V | 1.5A | 480V | 0.8A |
600V | 1.2A | 600V | 0.6A |
DC 13 RATING
| Voltage | Single Pole (INO + INO) | Voltage | Double Pole (2NO + 2NO) | ||
|---|---|---|---|---|---|
Single Throw | Double Throw | Single Throw | Double Throw | ||
120V | 0.5A | 0.25A | 115V | 1.0A | 0.2V |
240V | 0.25A | 0.1A | 230V | 0.3A | 0.1A |
600V | 0.05A | ------- | 600V | 0.1A | |
Mechanical Life : 20 X 10 Operations without Actuator
: 10 X 10 Operations with Actuator
Electrical Life : 5,00,000 operation (min) at 5A, 250V AC resistive load.
Frequency of Operation : 2500 Operations per hour (Max)
Terminal Capacity : 2.5 mm2 Solid or Stranded conductors
Operating Force : 595 gm (Max), 387 gm (Min.)
Pretravel (PT) : 1.73 -2.36 mm
Over Travel : 1.57 mm
Movement Differential : 1.27 mm
Operating Position : 5.05 mm (Max)
Operating Temperature : – 10°C to 70°C
| Ordering Code | ||||||
|---|---|---|---|---|---|---|
Description | ESSEN PART NO | |||||
SINGLE POLE 1NO + 1NC | DOUBLE POLE 2NO + 2NC | |||||
Basic Switch without Actuator | PS 1 | PS 2 | ||||
Plunger Type, Panel Mounting | PS 1TPB | PS 2TPB | ||||
Roller Plunger in Line to contact block, Panel Mounting | PS1TPRA | PS2TPRA | ||||
Roller Plunger at Right Angle to contact block, Panel Mounting | PS1TPRB | PS2TPRB | ||||
6" Lever (Right Hand Mounting) | PS1SILR | PS2SILR | ||||
6" Lever (Left Hand Mounting) | PS1SILL | PS1SILL | ||||
Roller Lever (Right Hand Mounting) | PS1RLR | PS2RLR | ||||
Roller Lever (Left Hand Mounting) | PSIRLL | PS2RLL | ||||
