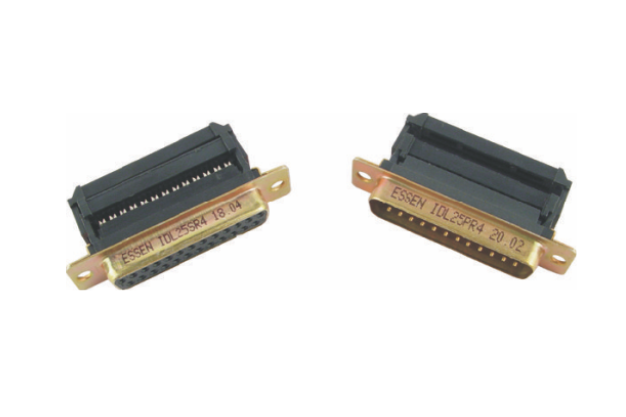

IDL SERIES
Essen Deinki’s IDL Series D-subminiature connectors are built for sturdy and reliable connections. They’re crafted from steel with a choice of zinc/cadmium or tin plating for durability. The insulators are made from flame-retardant thermoplastic material (UL94V-O), prioritizing safety. These connectors feature copper alloy contacts for dependable conductivity.
In terms of electrical performance, they support a current rating of 1.4A (26 AWG) or 1A (28 AWG). These connectors can withstand 1000V for one minute, have a low contact resistance of up to 15 milliohms, and offer excellent insulator resistance with a minimum of 3000 Mohms at 500V DC. They operate reliably in temperatures ranging from -50°C to +105°C, making them suitable for various applications where robust and safe connections are essential.
Technical data :
Shells
Insulator
Contacts
Electrical
Current rating
Dielectric strength
Contact resistance
Insulator resistance
Temperature
Steel, zinc/ cadmium or tin plated
Flame retardant thermoplastic
(UL94V-O) Copper alloy
1.4A (26 AWG), 1A (28 AWG)
1000V for one minute
3000 Mohms min.at 500V DC
15 milliohms (max.)
-50° to+ 105°C
MALE CONNECTORS
No. of contacts
- 09
- 15
- 25
- 37
With strain relief
- IDL09 PR( )
- IDL 15 PR( )
- IDL25 PR( )
- IDL37 PR( )
Without strain relief
- IDL09 PN ( )
- IDL 15 PN ( )
- IDL25 PN ( )
- IDL37 PN ( )
FEMALE CONNECTORS
No. of contacts
- 09
- 15
- 25
- 37
With strain relief
- IDL09 SR( )
- IDL 15 SR( )
- IDL25 SR( )
- IDL37 SR( )
Without strain relief
- IDL09 SN ( )
- IDL 15 SN( )
- IDL25 SN( )
- IDL37 SN( )
Add Following at ( ) in the ordering code above for contact details
| Plating Thickness | Gold All Over | Selective Gold on mating area |
|---|---|---|
Class3 | 1 | 4 |
Class 2 | 2 | 5 |
Class 1 | 3 | 6 |
