Board-SERIES
CONNECTORS FITTED WITH BOARD LOCK

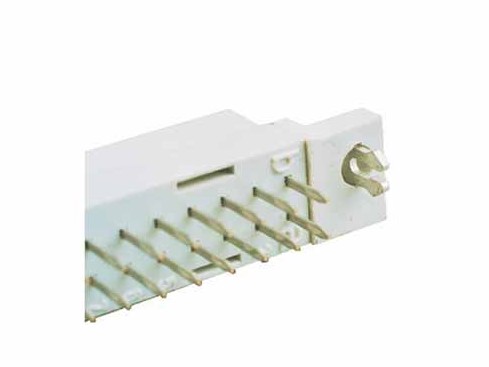

Standard euro and reverse euro connectors (form B, B/2, C, C/2, R, R/2, HE-11) are also available with board lock which snaps into holes on the PC board very easily by hand.
Board lock is tin Lead plated and hence is solderable in a through plated holes of PCB.
Board lock provides additional support to the connectors both before and after wave soldering. It also relieve the soldered joints of connector terminations during the mating and un-mating process
Straight Pin Connectors
Technical Data
- Board lock insertion force
- Board lock retention force
- Unsoldered
- Soldered
- Material
- 100N Max.
- 20N min.
- 200N min.
- Copper alloy
Right Angle Pin Connectors
| A(mm) | PCB Thickness (mm) | Suffix |
|---|---|---|
3.0 | 1.6 | B |
3.8 | 2.4 | L |
4.6 | 3.2 | K |
