B-Series
Essen deinki’s B-Series micro switches are all about precision and dependability. These switches are designed for quick snap-action, making sure they respond precisely in various applications. What sets them apart is the fine silver contacts, ensuring smooth and long-lasting operation. With a beryllium copper trident spring mechanism, they’re built tough for lasting durability.
Wiring is hassle-free with M3 terminal screws, and the 3.96 mm-wide wiring channels are well-protected by a removable insulated cover plate, adding an extra safety layer. They’re reliable and meet the IEC 1058-1 standard, assuring compatibility across different setups. When you need a trustworthy and precise switch, Essen deinki’s B-Series micro switches have you covered.
Characteristics
- Single pole changeover, snap acting switch.
- Fine silver contacts.
- Beryllium copper trident spring operating mechanism.
- M3 terminal screws.
- 3.96 mm. wide wiring channels protected by a removable, insulated cover plate.
- Conform to IEC 1058-1 standard.
Product
Description

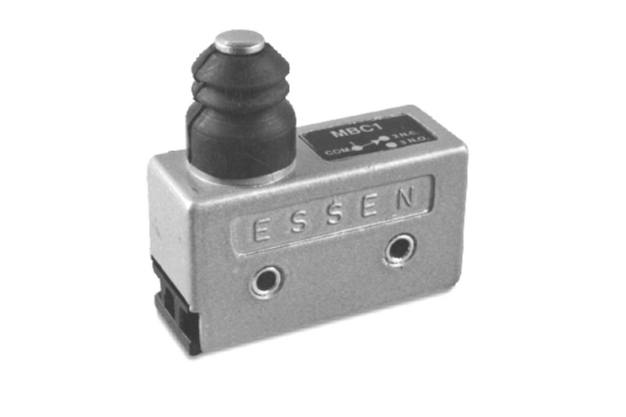

MBC1
- Actuating force: 723 gms, (max,)
- Release force: 170 gms. (min.)
- Pretravel: 1.5 mm. (max.)
- Overtravel: 4.6mm.
- Movement differential: 0.08 mm. (max.)
- Salient features:Spring plunger actuator protected by a synthetic
rubber cowl. - Enclosure:Â IP 54
MBC6
- Actuating force: 397 gms, (max,)
- Release force: 113 gms. (min.)
- Pretravel: 1.8 mm. (max.)
- Overtravel: 4.6mm.
- Movement differential: 0.025 mm. (max.)
- Salient features:Having slight offset plunger actuator, which affects operating characteristics, Its actuating force is lower then of MBC1
- Red Silicon rubber cowl
- Enclosure:Â IP 54
MBC7
- Actuating force: 1134 gms, (max,)
- Release force: 113 gms. (min.)
- Pretravel: 2.0 mm. (max.)
- Overtravel: 4.6mm.
- Movement differential: 0.165 mm. (max.)
- Salient features:It has wide contact separation, a feature that affects its DC performance and increases its actuating force.
Red silicone rubber cowl. - Enclosure:Â IP 54
ELECTRICAL RATING
AC (Resistive)
AC (Inductive)
DC (Resistive)
DC (Inductive)
15 A at 125V or 15 A at 250V
5 A at 125V or 5 A at 250V
0.75 A at 125V or 0.5 A at 250V
0.5 A at 125V or 0.25 A at 250V
MBC1 S (sealed)
- Actuating force: 723 gms, (max,)
- Release force: 170 gms. (min.)
- Pretravel: 1.5 mm. (max.)
- Overtravel: 4.6 mm.
- Movement differential: 0.08 mm. (max.)
- Wire Size:Three 37.5 cm. long P.V.C. wires of 1.0 sq. mm
- Salient features: Sealed micro switch
- Enclosure:Â IP 54
White: Normally open contact
Black: Common contact
Red: Normally closed contact
Note: For wire length other than 0.375 meter, please add suffix in the ordering code.e.g.
0.375 meter – No Suffix (standard length)
0.50 meter – 050
0.75 meter – 075
1.0 meter – 100
2.0 meter – 200
2.5 meter – 250
eg. for sealed microswitch with wire length 3 meters the ordering code is MBC1S-300
MBC1 P1
- Actuating force: 283 gms.(max.)
- Release force: 113 gms. (min.)
- Pretravel: 0.7 mm. (max.)
- Overtravel: 3.56 mm.
- Movement differential: 0.05 mm. (max.)
- Salient features: Plain plunger with single hole mounting in plates or panels upto 6.35 mm. thickness.
- Enclosure: IP 40
MBC1 R2
- Actuating force: 283 gms.(max.)
- Release force: 113 gms. (min.)
- Pretravel: 0.8 mm. (max.)
- Overtravel: 3.56 mm.
- Movement differential: 0.05 mm. (max.)
- Salient features: Nylon roller plunger
with single hole mounting. - With metal roller : Ordering Code – MBC1 R2M
- Enclosure: IP 40
MBC1 R3
- Actuating force: 283 gms.(max.)
- Release force: 113 gms. (min.)
- Pretravel: 0.8 mm. (max.)
- Overtravel: 3.56 mm.
- Movement differential: 0.05 mm. (max.)
- Salient features: Similar to MBC1R2 but roller turned through 90° running across the line of case.
- With metal roller : Ordering Code – MBC1 R3M
- Enclosure: IP 40
MBC1 / LRI
- Actuating force: 300 gms, (max.)
- Release force: 150 gms.(min.)
- Pretravel: 10 mm. (max.)
- Overtravel: 9 mm.
- Movement differential: 0.04 mm. (max.)
- Salient features:Auxiliary actuator –
roller lever adjustable upto 145°. - Enclosure: IP 54
MBC1-LL1
- Actuating force: 300 gms, (max.)
- Release force: 150 gms.(min.)
- Pretravel: 10 mm. (max.)
- Overtravel: 9 mm.
- Movement differential: 0.04 mm. (max.)
- Salient features:Auxiliary actuator – stainless steel lever with ramp – shaped end. Adjustable through 75°
- Enclosure: IP 54
ELECTRICAL RATING
AC (Resistive)
AC (Inductive)
DC (Resistive)
DC (Inductive)
15 A at 125V or 15 A at 250V
5 A at 125V or 5 A at 250V
0.5 A at 125V or 0.25 A at 250V
0.03 A at 125V or 0.02 A at 250V
TECHNICAL DATA
Contact resistance
Insulation resistance
Voltage proof
Terminals
Electrical life
Mechanical life
10 milliohms (max.)
1000 megaohms (min)
1 KV AC for one minute
M3 Screw with washer
50,000 operations
1 million operations
