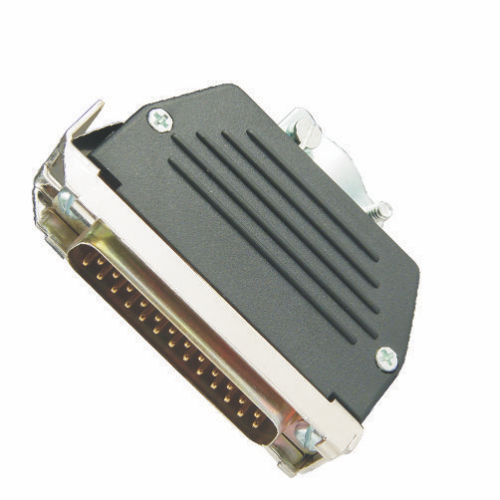

DS- SERIES
Characteristics
- A plug issupplied to close the unused outlet.
- Thehood comprises of base,cover, 2/4 mounting screws, 2 screws for retaining connector,1 external cable clamp with 2screws, one plug.
Hoods with side lock Plastic / Metallised
No.of ways
- 09
- 15
- 25
- 37
- 50
With Cable Clamps
- DS 09
- DS 15
- DS 25
- D5 37
- DS 5O
A
- 32.2
- 39.8
- 54.2
- 70.7
- 68.0
B
- 22.1
- 26.1
- 30.3
- 38.2
- 38.2
C
- 25.0
- 33.3
- 47.0
- 63.5
- 61.1
D
- 38.5
- 48.0
- 63.0
- 79.0
- 76.5
E
- 15.0
- 15.0
- 15.0
- 15.0
- 18.0
F
- 28.6
- 34.1
- 38.3
- 46.2
- 46.2
Round Max.
- 6
- 7
- 8
- —
- —
Cable Round Min.
- 4
- 5
- 6
- —
- —
Outlet Flat Max.
—
—
—
7×16
10×16
Flat Min.
- —
- —
- —
- 5×16
- 5×16
* Add suffix ‘S’ for hood complete with slide lever and spring.
* Add prefix’M’ for metallised version eg. : MDS09 or MDS09S
Accessories for hood with side lock
Slide Lever
Material : Steel
Finish : Nickel plating
Finish : Nickel plating
No. of ways
- 09
- 15
- 25
- 37
- 50
Ordering code
- S 09
- S 15
- S 25
- S 37
- S 50
A
- 37.6
- 44.1
- 59.1
- 75.0
- 73.5
B
15.3
15.5
15.5
15.5
15.5
C
21.0
30.3
43.0
59.5
57.1
30.3
43.0
59.5
57.1
D
- 14.4
- 14.4
- 14.8
- 14.8
- 17.8
E
- 6.5
- 6.5
- 6.6
- 6.6
- 6.6
Spring
Material : Stainless steel
Ordering code : SP9/50
Over Flange Mounting
Material : Steel
Finish : Nickel Plating
Ordering code : LOF9/37
Rear Pannel Mount Over Flange
Material : Steel
Finish : Nickel Plating
No. of ways
- 09
- 15
- 25
- 37
- 50
Ordering code
ROF 9/37
ROF 9/37
ROF 9/37
ROF 9/37
ROF 50
A
- 20.47
- 29.80
- 42.52
- 59.08
- 56.34
B
12.50
16.66
23.52
31.75
30.56
C
24.99
33.32
47.04
63.5
61.11
D
- 11.40
- 11.40
- 11.40
- 11.40
- 14.10
E
- 11.81
- 11.81
- 11.81
- 11.81
- 14.86
Under Flange Mounting
Material : Steel
Finish : Nickel Plating
No. of ways
- 09
- 15
- 25
- 37
- 50
Ordering code
LUF 9/37
LUF 9/37
LUF 9/37
LUF 9/37
LUF 50
A
- 14.3
- 14.3
- 14.3
- 14.3
- 17.2
Accessories For D-Sub Connectors
BUSH
Material : Copper alloy
Finish : Nickel/Tin plating
Ordering Code BD3 for Nickel plating
BDT3 for Tin plating
METAL BRACKET
Material : Steel
Finish : Nickel/Tin plating
Ordering Code MBD3 for Nickel plating
MBDT3 for Tin plating
PLASTIC BRACKET
Material : Flame retardant thermoplastic (UL 94V-O)
Ordering Code LB
HEXAGONAL SCREW
Finish : Nickel plating
Material : Steel (MS)
Ordering Code S4
NUT
Material : Steel (MS)
Finish : Nickel plating
Ordering Code N4
SPRING WASHER
Material : Spring Steel
Ordering Code W4
HEXAGONAL SCREW WITH NUT & WASHER
Ordering Code SNW4
CABLE CLAMP FOR METAL HOODS
Ordering Code EKS1
Cable Clamp
Material : Zinc alloy
Finish : Natural
Screws
Material : Steel
Finish : Zinc plating with white passivation
*Assembly consists of 2 casted halves of cable clamp and 2 screws M 2.5 x 12 mm.
GUIDED MOUNTING BRACKET
Material : Flame Retardant
thermoplastic (UL 94 V-0)
Ordering Code
| No. of ways | With M3 bush | Without bush | A | B |
|---|---|---|---|---|
09 | GBB09 | GB09 | 30.9 | 25.0 |
15 | GBB15 | GB15 | 39.2 | 33.3 |
25 | GBB25 | GB25 | 53.0 | 47.0 |
37 | GBB37 | GB37 | 69.5 | 63.5 |
50 | GBB50 | GB50 | 67.0 | 61.1 |
CRIMPING FLANGE
CRIMPING FLANGE
Ordering Code CF1X/X* for 9 to 37 way hoods
CF2 X/X* for 50 way hoods
CRIMPING BUSH
Ordering Code CF1X/X*
* inner / outer diameter of the cable
PROCESS FOR CRIMPING
- Strip cable to required
- Slide the crimp bush over the cable
- Slide the crimping flange under the
- Crimping operation is carried out by placing the assembly on the crimping tool andpressing it by a manual hand press.
- Push the crimped assembly in the keyway provided in the metal hood.
In order to ensure easy fitting andhigh reliability,users are requested to furnish details of the cable so as to work out the exact size of the crimping flange, crimping bush and crimping tool suitable for user’s cable.
