LM-Series

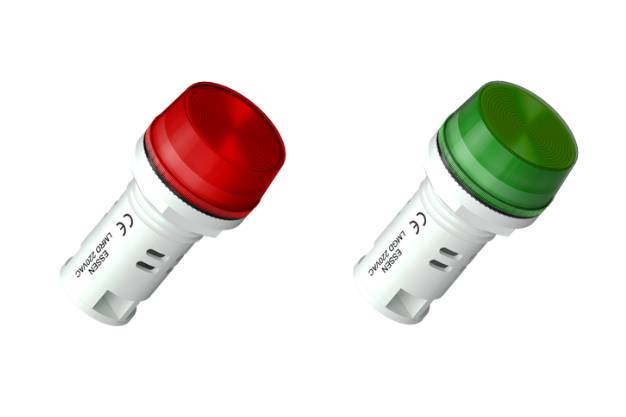

Essen deinki’s LED Module Pilot Lights LM Series are truly impressive when it comes to lighting solutions. These lights offer exceptional brightness, making them perfect for a wide range of applications where clear illumination is crucial. One standout feature is their impressive lifespan,

What’s more, these lights are equipped with surge protection, so you don’t have to worry about voltage spikes damaging them. They’re also incredibly energy-efficient, consuming very little power. Plus, they’re built to be tough – shockproof and resistant to vibrations, so they can handle a bit of rough treatment.

Their modular design allows for flexibility in configuration, and they can handle fluctuations in voltage without a hitch. With fine serrated lenses and a compact size, they come in various colours and styles, including a low voltage protection option for added safety. They even come with a detachable shroud for terminal protection, which makes installation a breeze.

  • LM ()DM -Multi voltage (24-220V AC/DC)
  • Cut Out Required – 22.5 mm dia

Characteristics

  • Excellent illumination
  • Long life
  • With surge protection
  • Low current consumption
  • Incorporates solid-state devices
  • Shock proof and vibration resistant
  • Modular in construction
  • Capable of withstanding wide voltage variations
  • Fine serrated lens
  • Compact in size and are available for direct connection across 41SV AC Supply
  • Available in Red, Green, Yellow, Amber, Blue and White colour Lens with and without diffuser
  • Provided with a shroud to cover terminals. Shroud is detachable to facilitate termination through lugs
  • Available with LVGP. ( Low Voltage Glow Protection)

Product

Description

Without LVGP

Ordering code

LM( )D 24V AC
LM( )D 48V AC
LM( )D 110V AC
LM( )D 220V AC
LM( )D 41SV AC
LM( )D 12V DC
LM( )D 24V DC
LM( )D 48V DC
LM( )D 110V DC
LM( )D 220V DC
LM( )D M

Voltage

24V AC
48V AC
110V AC
220V AC
415V AC
12V DC
24V DC
48V DC
110V DC
220V DC
Multi voltage (24 to 220V AC/DC)

Technical data ( For complete LM Series shown on Page 1, 2, & 3)

With Surge Protection

Ordering code

  • LM( )D* 24V AC
  • LM( )D* 48V AC
  • LM( )D* 110V AC
  • LM( )D* 220V AC
  • LM( )D* 12V DC
  • LM( )D* 24V DC
  • LM( )D* 48V DC
  • LM( )D* 110V DC
  • LM( )D* 220V DC
  • LM( )D* M

Voltage

  • 24V AC
  • 48V AC
  • 110V AC
  • 220V AC
  • 12V DC
  • 24V DC
  • 48V DC
  • 110V DC
  • 220V DC
  • Multivoltage (24 to 220V AC/DC)
Current
Voltage


Volatage Variation
Insulation resistance
Dielectric test voltage
Illumination method
Ambient temprature
Available colour
Bazel colour
Material
Terminal
Cut-out required
Ingress protection

10mA to 15mA (voltage dependant)
24, 48, 110, 220, 415 V AC
12, 24, 48, 110, 220 V DC
Multi voltage 24 to 220V AC/DC
±20% of operating voltage
> 500 Mohms
2.5 KVAC for 1 minute
Light emitting diodes controlled by electronic circuitry
-20°C to + 75°C
Red, Green, Yellow, Amber, White and Blue
Off-White
Thermoplastic with ribbed polycarbonate lens
M3 screw with captive washer
22.5 mm. dia
IP20 (rear), IP65 (front)

With LVGP (LowVoltageGlowProtection)

Ordering code

LM( )D L 24V AC
LM( )D L 48V AC
LM( )D L 110V AC
LM( )D L 220V AC
LM( )D L 12V DC
LM( )D L 24V DC
LM( )D L 48V DC
LM( )D L 110V DC
LM( )D L 220V DC

Voltage

24V AC
48V AC
110V AC
220V AC
12V DC
24V DC
48V DC
110V DC
220V DC

With Surge Protection

Ordering code

LM( )D S 24V AC
LM( )D S 48V AC
LM( )D S 110V AC
LM( )D S 220V AC
LM( )D S 12V D SC
LM( )D S 24V D SC
LM( )D S 48V D SC
LM( )D S 110V D SC
LM( )D S 220V D SC
LM( )D S SM

Voltage

24V AC
48V AC
110V AC
220V AC
12V DC
24V DC
48V DC
110V DC
220V DC
Multivoltage (24 to 220V AC/DC)

415V AC & Multivoltage LED module pilot lights donot have LVGP facility.

( ) Colour : Red – R, Green – G, White – W, Amber – A, Blue – B, Yellow – Y

Ordering Code

Series

LM

Colour

R

R – RED
G – GREEN
W – WHITE
A – AMBER
B – BLUE
Y – YELLOW

with Diffuser

D

with Diffuser -D

with Diffuser -D

with LVGP

L

OMITTED : WITHOUT LVGP
L : WITH LVGP
S : WITH SU RGE PROTECTION

Voltage

220 VAC

24, 48, 110, 220, 415 VAC
12, 24, 48, 110, 220 VDC
M: MULTI VOLTAGE (24 – 220 V AC/DC)

Note: For clustered LED upto 3 Nos. please add ‘3’ in prefix
e.g : 3 LMRD 220 AC

ADAPTOR PLATES
Material
Plating
Ordering Code
Steel
Nickel
‘AD25’ suitable for 25.5 mm. cut-out
‘AD30’ suitable for 30.5 mm. cut-out
‘AD45’ suitable for 45 mm. cut-out
Other sizes on request

With Legend

Product

Description

Without LVGP

Ordering code

LM( )D* 24V AC
LM( )D* 48V AC
LM( )D* 110V AC
LM( )D* 220V AC
LM( )D* 41SV AC
LM( )D* 12V DC
LM( )D* 24V DC
LM( )D* 48V DC
LM( )D* 110V DC
LM( )D* 220V DC
LM( )D* M

Voltage

24V AC
48V AC
110V AC
220V AC
415V AC
12V DC
24V DC
48V DC
110V DC
220V DC
Multi voltage (24 to 220V AC/DC)

With LVGP (Low Voltage Glow Protection)

Ordering code

LM( )D* L 24V AC
LM( )D* L 48V AC
LM( )D* L 110V AC
LM( )D* L 220V AC
LM( )D* L 12V DC
LM( )D* L 24V DC
LM( )D* L 48V DC
LM( )D* L 110V DC
LM( )D* L 220V DC

Voltage

24V AC
48V AC
110V AC
220V AC
12V DC
24V DC
48V DC
110V DC
220V DC

For Legend at * refer Table Below

S.NO Legend
01
START
02
STOP
03
FWD
04
REV
05
UP
06
DOWN
07
ON
08
OFF
09
OPEN
10
CLOSE
S.NO Legend
11
AUTO
12
HAND
13
RESET
14
INCH
15
SLOW
16
FAST
17
PWR ON
18
E. STOP
19
RIGHT
20
LEFT
S.NO Legend
31
32
1
33
2
34
3
35
↑
36
L
37
R
38
Y
39
B
40
G
S.NO Legend
31
W
32
A
33
TRIP
34
SPRG. CHRD.
35
HLTHY
36
FAIL
40
SERV POSN
41
TRIP POSN
46
TRIP HLTHY
( ) Colour
Red – R
Amber – A
Green – G
Blue – B
