TPF (6 Ampere) – SERIES
- Overview
- Characteristics
- Products

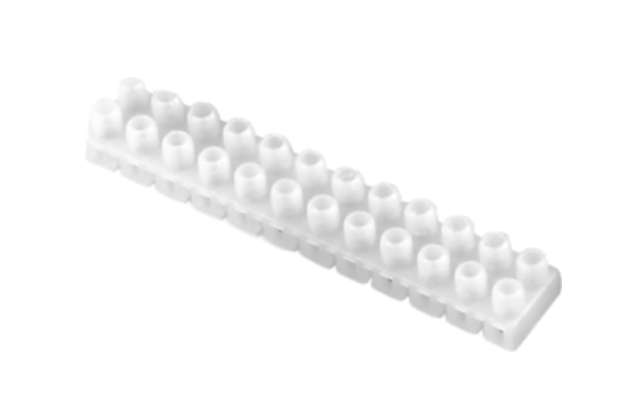

Essen deinki brings you TPF 6 Ampere Series 6 Ampere terminal strips that are connectors used in the wiring system to facilitate the connection and organisation of wires. Consisting of rigid insulating base with metal terminals that securely hold and connect multiple wires together. Terminal strips play a crucial role in industrial and electronic applications making the process of disconnecting , connecting and troubleshooting electrical circuits. They provide a neat and organised way to deal with wiring and minimising the probability of short circuits.These electrical connector strips are one of a kind.
Wire Size– 1.5 sq. mm
materialsÂ
Housing – LDPE
Characteristics
- Moulded in LDPE (Flexible)
- Available in enclosed terminals
- Available in 2, 3, 4, 6, 8, 10, & 12 No. of ways
Ordering code
- TPF 6/2
- TPF 6/3
- TPF 6/4
- TPF 6/6
- TPF 6/8
- TPF 6/10
- TPF 6/12
No.of ways
- 02
- 03
- 04
- 06
- 08
- 10
- 12
A
- 19.56
- 2934
- 39.11
- 58.67
- 78.23
- 97.79
- 117.35
Â
TECHNICAL DATA:
- Terminals
- Electrical ratings
- Breakdown voltage
- Wire size
- Closed terminals
- 6A,500V AC
- 2.0 KV AC for 1 min. between adjacent terminals and BN S 2.5 KV AC between terminals & insulator
- 1.5 Sg.mm. (max.
MATERIALS :
- Housing
- Terminal
- Screws
- LDPE
- Copper alloy nickel plated
- Steel zinc plated, yellow chromated
